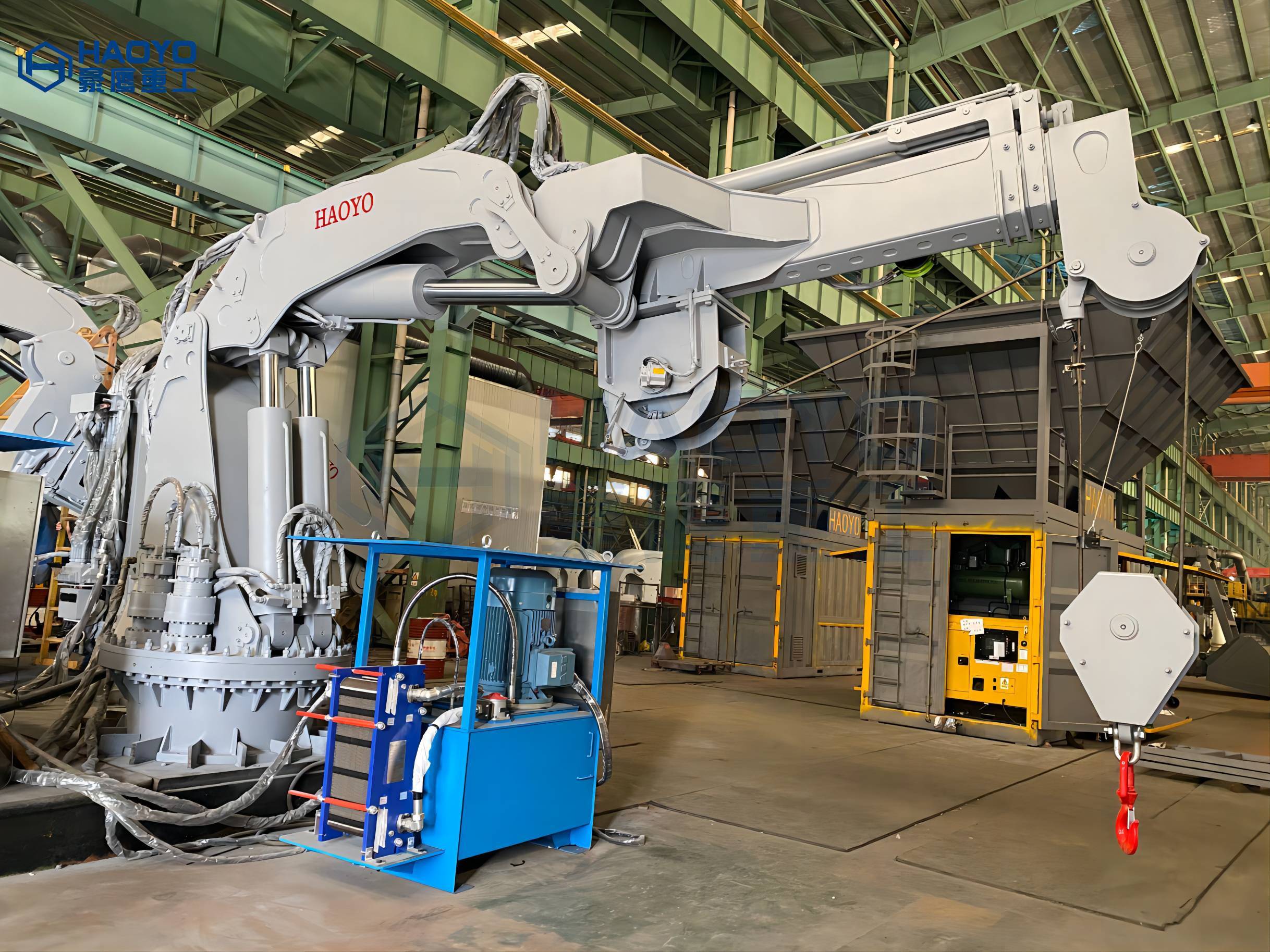

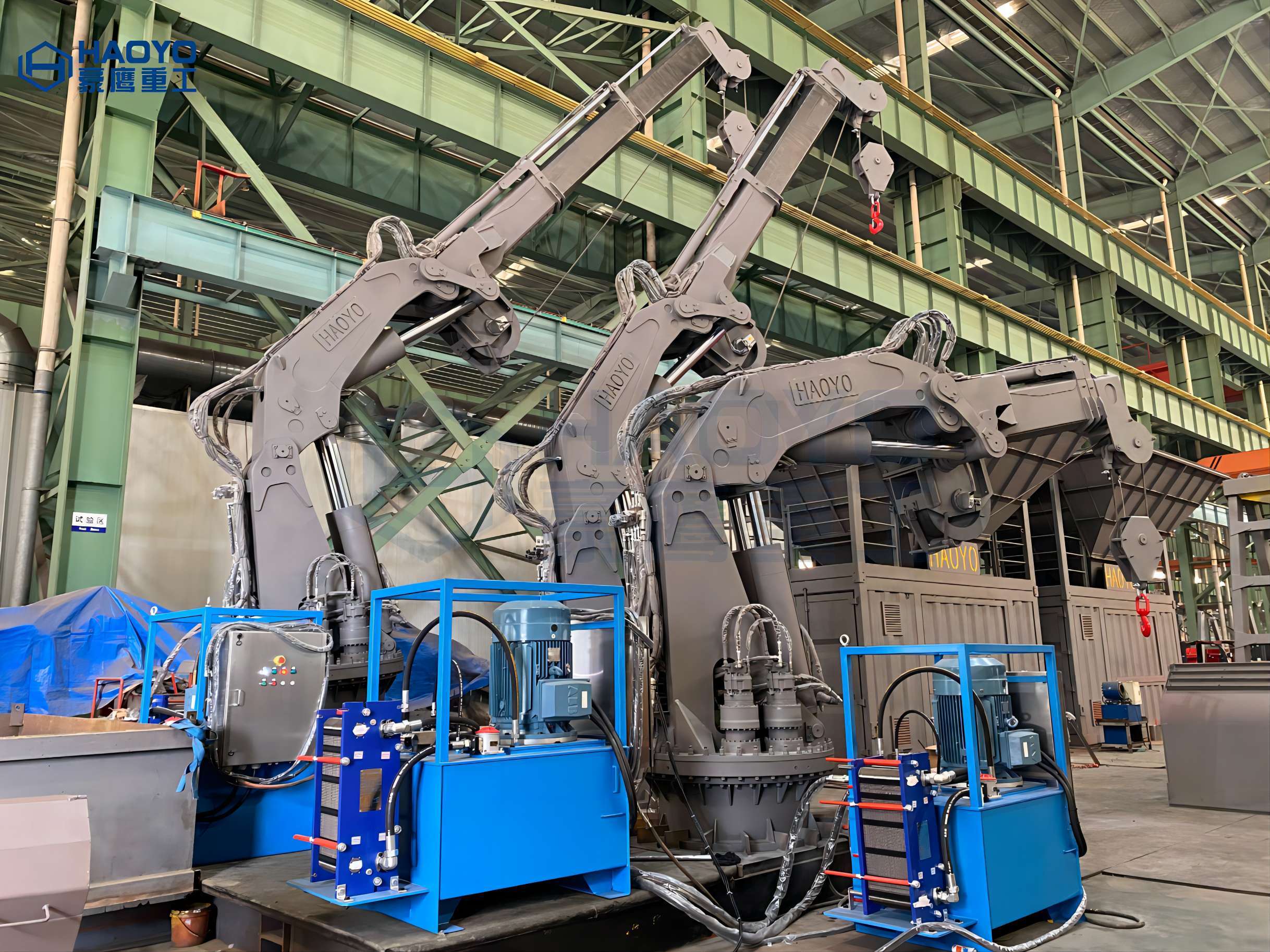

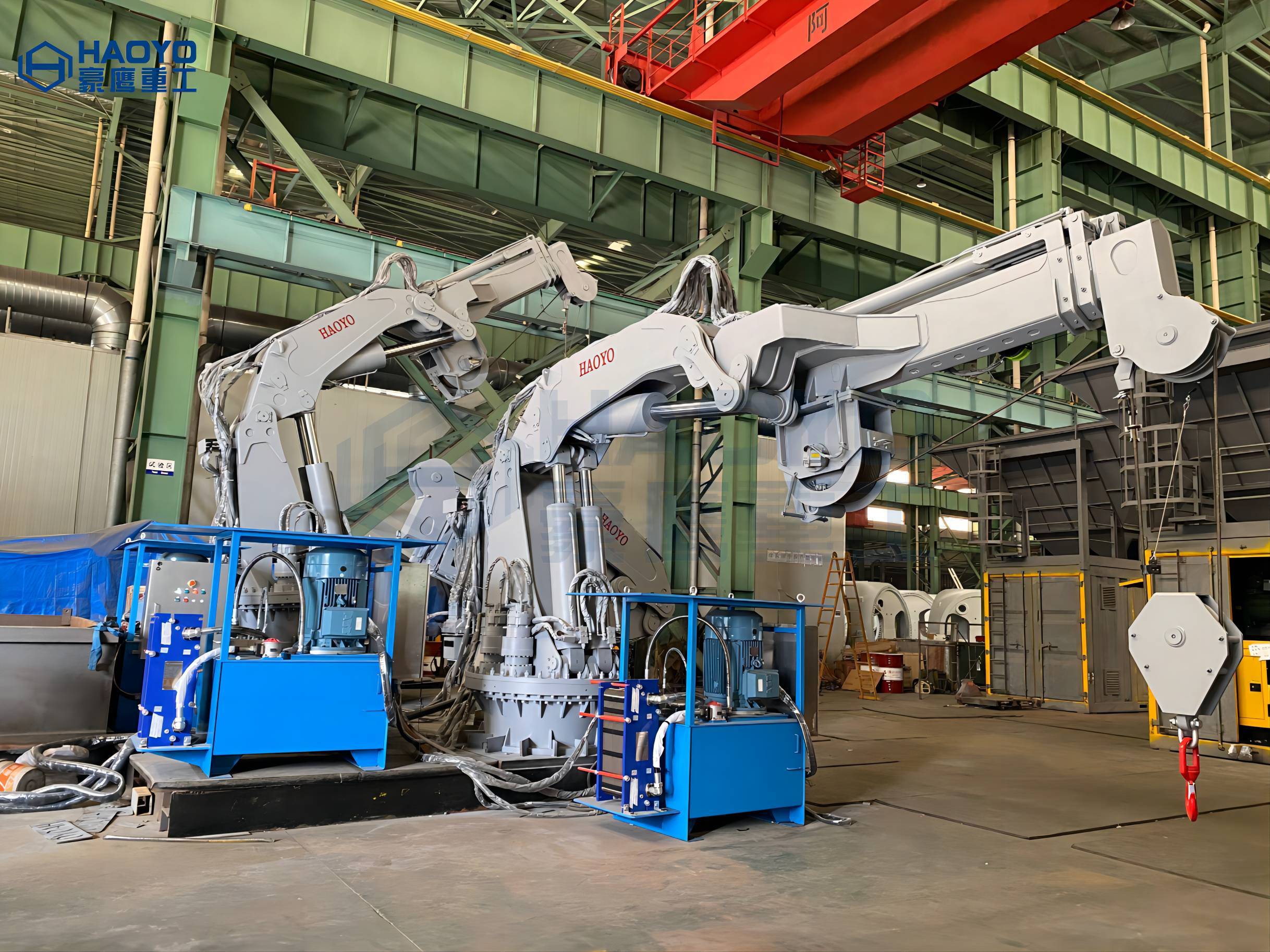

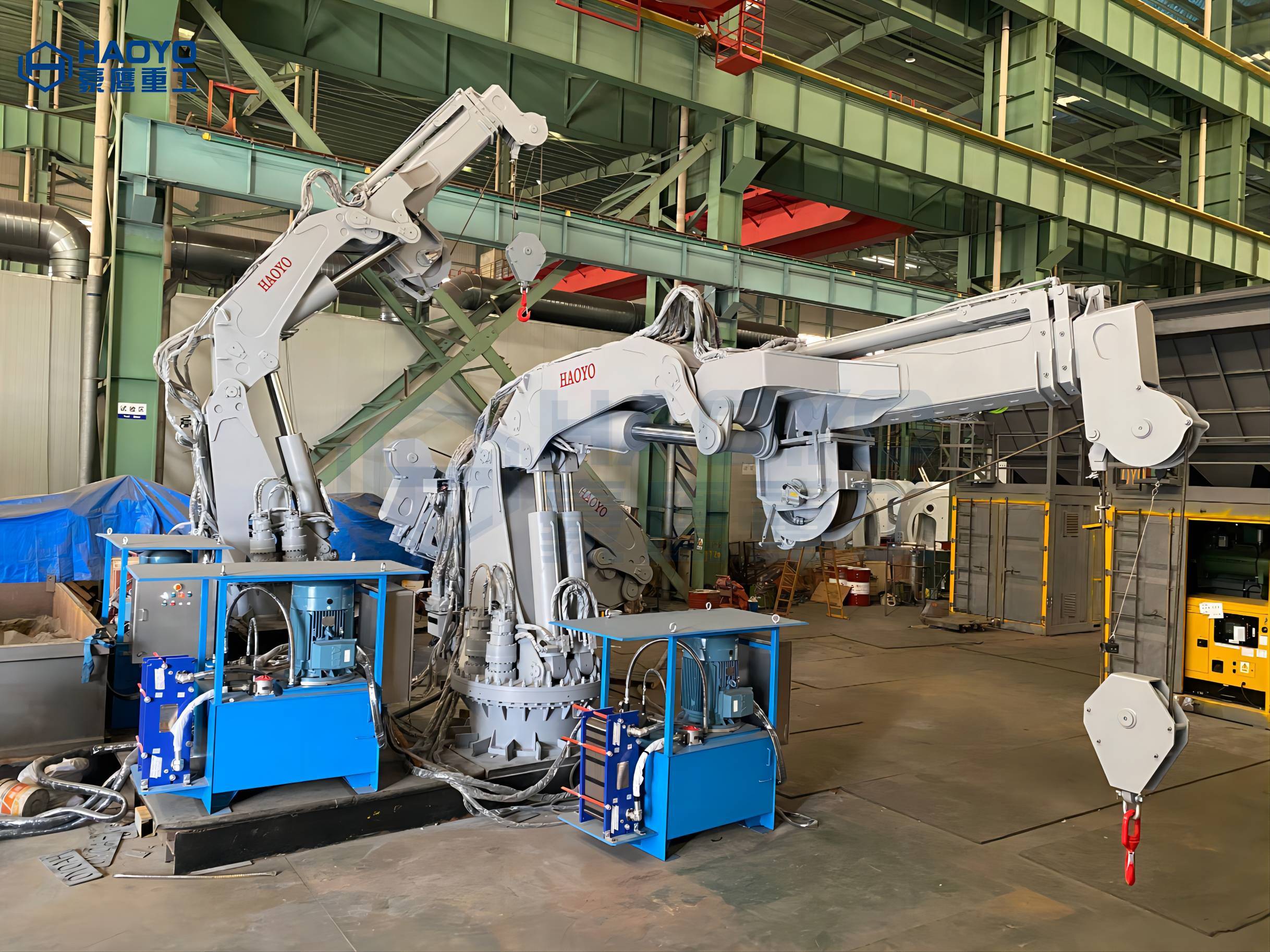

7.5T 9M FOLDABLE KNUCKLE MARINE CRANE
7.5T 9M FOLDABLE KNUCKLE MARINE CRANE
Lifting Range: 7.5T-2.5T
Max Outreach: 2.5M-9M
Certificate: ABS,BV,CCS, DNV,LR,NK,ISO9001
Application: Service Crane, Provision and Cargo Lifting Crane, Service Crane, Fishing Crane
Features: Flexible and Strong, Saving Space,Multi-function
Introduction: With full foldable boom structure, HAOYO foldable boom crane can work in strongly and flexibly.
The foldable boom crane is installed on many types of the vessel especially the limited space as a multi-functional tool.
|
Crane Model |
Outreach (m) |
Lifting capacity (kg) |
Lifting moment (kNm) |
Total Moment (kNm) |
Pedestal Outer Diameter (mm) |
Slewing (Angle °) |
Pressure (bar) |
Dead Weight (kg) |
|
CF20 |
0.6-3.0 |
500-300 |
9-15 |
15 |
260 |
400 |
250 |
300-380 |
|
CF45 |
0.8-4.0 |
1000-500 |
20-40 |
45 |
500 |
400 |
250 |
560-860 |
|
CF80 |
1.5-6.0 |
1200-500 |
30-72 |
80 |
500 |
400 |
250 |
650-950 |
|
CF100 |
4.6-10.8 |
2200-750 |
81-95.6 |
100 |
620 |
360 |
250 |
1730-2030 |
|
CF120 |
4.6-10.8 |
2600-900 |
97.2-115.5 |
120 |
620 |
360 |
250 |
1750-2100 |
|
CF150 |
4.55-12.85 |
3280-830 |
106.6-147.3 |
150 |
800 |
360 |
250 |
2120-2500 |
|
CF180 |
4.55-12.85 |
3900-1020 |
131-173.5 |
180 |
800 |
360 |
250 |
2270-2750 |
|
CF220 |
4.4-15 |
4900-850 |
128-211 |
220 |
900 |
360 |
250 |
3050-3900 |
|
CF270 |
4.4-15 |
6100-1100 |
165-256 |
270 |
900 |
360 |
250 |
3600-4340 |
|
CF320 |
5.35-17.85 |
5900-1080 |
192.8-308.7 |
320 |
1050 |
360 |
250 |
4950-6200 |
|
CF370 |
5.35-17.85 |
6900-1250 |
223.1-363.8 |
370 |
1250 |
360 |
250 |
5300-6800 |
|
CF450 |
5.5-21.5 |
8150-1300 |
279.5-446.6 |
450 |
1550 |
360 |
250 |
7800-10500 |
|
CF550 |
5.5-21.5 |
9900-1650 |
354.8-539 |
550 |
1550 |
360 |
205 |
8500-11250 |
If above don' have the right model you need, please send us your requirements, we will design for you.
|
STANDARDS |
OPTIONS |
|
Automatic speed control |
Radio remote control |
| Operate Seat With control panel |
Operator’s cabin |
|
Loading limited device |
Load screen display |
|
360 Continuous rotation system |
other angle |
|
Water-Proof |
Anti-Spark |
|
Winch |
Only hook or Workman basket or others |
|
Hydraulic power pack |
Diesel engine pack |
|
Wind cooling |
Heater,water cooling,chiller |
|
Emergency stop |
Emergency stop alarm |
| ABS Marine painting | Wind power painting |
Please provide following necessary information,so we can quote right Model crane.
1. SWL requested(___ T/___M)
2. Max. working radius of the crane(___M)
3. The cargo crane will handle and crane work voltage,work environment,Sea state.
4. If you have any other special request for the crane, please advise us.
VIEW MORE PHOTOS
