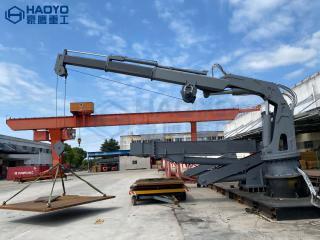

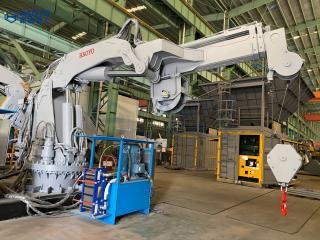

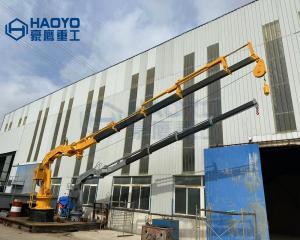

2PRODUCTION PHOTO
-
3TECHNICAL PARAMETER
19M FOLDABLE MARINE CRANE
Folding Boom Marine Crane
Lifting Range: 30 UP TO 600 KNM
Max Outreach: 6-40 m
Certificate: ABS,BV,CCS, DNV,LR,NK,ISO
Application: Service Crane, Provision and Cargo Lifting Crane, Service Crane, Fishing Crane
Features: Flexible and Strong, Saving Space,Multi-function
Introduction: With full foldable boom structure, HAOYO foldable boom crane can work in strongly and flexibly.
The foldable boom crane is installed on many types of the vessel especially the limited space as a multi-functional tool.
Please choose the suitable crane
|
Crane Model
|
Outreach (m) |
Lifting capacity (kg) |
Lifting moment (kNm) |
Total Moment (kNm) |
Pedestal Outer Diameter (mm) |
Slewing (Angle °) |
Operating Pressure (bar) |
Dead Weight (kg) |
|
CF20 |
0.6-3.0 |
500-300 |
9-15 |
15 |
260 |
400 |
250 |
300-380 |
|
CF45 |
0.8-4.0 |
1000-500 |
20-40 |
45 |
500 |
400 |
250 |
560-860 |
|
CF80 |
1.5-6.0 |
1200-500 |
30-72 |
80 |
500 |
400 |
250 |
650-950 |
|
CF100 |
4.6-10.8 |
2200-750 |
81-95.6 |
100 |
620 |
360 |
250 |
1730-2030 |
|
CF120 |
4.6-10.8 |
2600-900 |
97.2-115.5 |
120 |
620 |
360 |
250 |
1750-2100 |
|
CF150 |
4.55-12.85 |
3280-830 |
106.6-147.3 |
150 |
800 |
360 |
250 |
2120-2500 |
|
CF180 |
4.55-12.85 |
3900-1020 |
131-173.5 |
180 |
800 |
360 |
250 |
2270-2750 |
|
CF220 |
4.4-15 |
4900-850 |
128-211 |
220 |
900 |
360 |
250 |
3050-3900 |
|
CF270 |
4.4-15 |
6100-1100 |
165-256 |
270 |
900 |
360 |
250 |
3600-4340 |
|
CF320 |
5.35-17.85 |
5900-1080 |
192.8-308.7 |
320 |
1050 |
360 |
250 |
4950-6200 |
|
CF370 |
5.35-17.85 |
6900-1250 |
223.1-363.8 |
370 |
1250 |
360 |
250 |
5300-6800 |
|
CF450 |
5.5-21.5 |
8150-1300 |
279.5-446.6 |
450 |
1550 |
360 |
250 |
7800-10500 |
|
CF550 |
5.5-21.5 |
9900-1650 |
354.8-539 |
550 |
1550 |
360 |
205 |
8500-11250 |
|
STANDARDS |
OPTIONS |
|||||||
|
Automatic speed control |
Radio remote control |
|||||||
|
Low / high temperature operation |
Heater |
|||||||
|
Oil return |
Standing platform |
|||||||
|
Continuous rotation system |
Overload protection |
|||||||
|
Power supply link system |
Electric hydraulic power unit |
|||||||
|
Long life surface treatment: anti-corrosion |
Loading limited device |
|||||||
|
Structure is sand blasted and metalized |
Cooling system for hydraulic oil |
|||||||
|
Double primer coat and two layers paint |
Workman basket |
|||||||
|
Special cylinder for marine environment |
Emergency stop alarm |
|||||||
|
Control panel |
Operator’s cabin |
|||||||
If above don' have the right type you need, please send us your requirement, we will design the model for you.
Please provide following necessary information,so we can quote right Model crane.
1. Max work radius.
2. Lift weight at max work radius, or at different work radius.
3. The crane work environment and the crane work voltage.
4. If you have any other special request for the crane, please advise us.
